5 Compartment Battery Swap Cabinet
5 Compartment Battery Swap Cabinet
- Product Model：XPE-05BNFNMMS
- Overall Dimensions:397(W)x1715(H)x481(D) mm
- Single Slot Internal Dimensions:260(W)x220(H)x410(D) mm
- Slots:5
- Color & Finish: Default orange-white; customisable
- Battery Swap Methods: APP Scanning / NFC Card
- Peak Charging Efficiency:93.5%
- Maximum Charging Power per Channel:1500W / 20A
- Dust & Water Protection: IP54
6 Compartment Battery Swap Cabinet
6 Compartment Battery Swap Cabinet
- Product Model:XPE-06BNAFNAAR
- Overall Dimensions:380(W)x1735(H)x499(D)mm
- Single Slot Internal Dimensions:260(W)x220(H)x410(D)mm
- Slots:6
- Color & Finish:Default orange-white; customisable
- Battery Swap Methods: APP Scanning / NFC Card
- Peak Charging Efficiency:93.5%
- Maximum Charging Power per Channel:1500W / 20A
- Dust & Water Protection:IP54

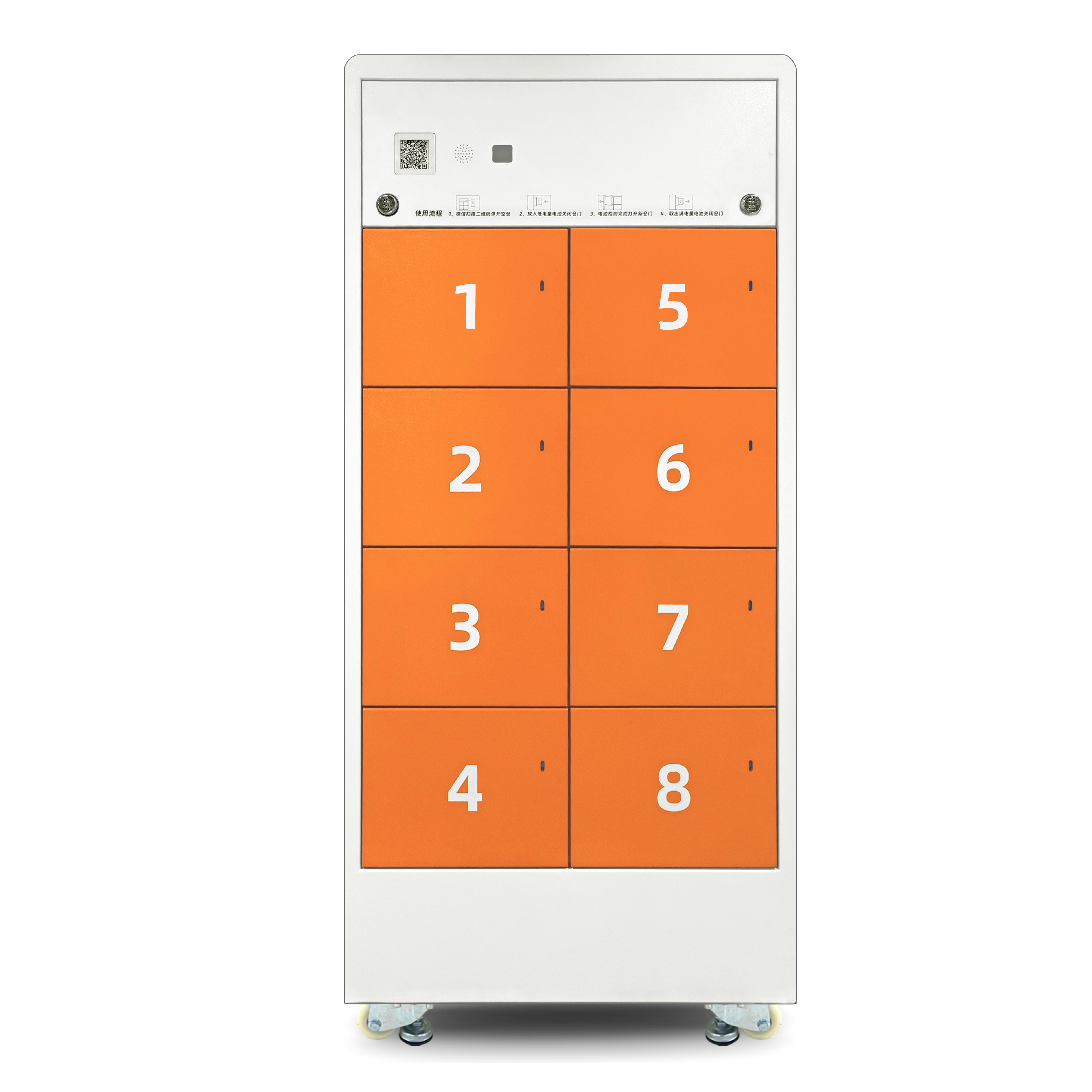

8 Compartment Battery Swap Cabinet
8 Compartment Battery Swap Cabinet
- Product Model:XPE-8BNAFNAAS
- Overall Dimensions:780(W)×1686(H)×480(D) mm
- Single Slot Internal Dimensions:260(W)×220(H)×410(D) mm
- Slots: 8
- Color & Finish:Default orange-white; customisable
- Battery Swap Methods: APP Scanning / NFC Card
- Peak Charging Efficiency:93.5%
- Maximum Charging Power per Channel:1500W / 20A
- Dust & Water Protection:IP54
12 Compartment Intelligent Battery Swap Cabinet
12 Compartment Intelligent Battery Swap Cabinet
- Product model: XPE-12BNAFNHAS
- Overall dimensions:1140 (W)x1686 (H)x480 (D) mm
- Net dimensions of a single bin:260 (W)×220 (H)x410 (D) mm
- Number of machine compartments: 12
- Color and pattern: default is orange-white; Customization is supported
- Battery Swap Methods: APP Scanning / NFC Card
- Peak charging efficiency: 93.5%
- Maximum charging power per channel: 1500W / 20A
- Dust and water resistance: IP54
15 Compartment Battery Swap Cabinet
15 Compartment Battery Swap Cabinet
- Product Model:XPE-15BNAFNAAR
- Overall Dimensions:1140(W)x1786(H)x480(D) mm
- Single Slot Internal Dimensions:260(W)x220(H)x410(D)mm
- Slots:15
- Color & Finish:Default orange-white; customisable
- Battery Swap Methods: APP Scanning / NFC Card
- Peak Charging Efficiency:93.5%
- Maximum Charging Power per Channel:1500W / 20A
- Dust & Water Protection:IP54
12 Compartment Bottom-insertion Battery Swap Cabinet
12 Compartment Bottom-insertion Battery Swap Cabinet
- Product Model: XPE-12BSAFNHAH
- Overall Dimensions:750(W) ×1780(H) ×766(D)mm
- Single Slot Internal Dimensions:130(W) ×174(H) ×378(D) mm
- Slots:12
- Color & Finish: Default orange-white; customisable
- Battery Swap Methods: APP Scanning / NFC Card
- Peak Charging Efficiency:93%
- Maximum Charging Power per Channel:1300W/20A
- Dust & Water Protection: IP54
26-10 Compartment Smart Battery Swap Cabinet
26-10 Compartment Smart Battery Swap Cabinet
- Product model: XPE-10ENNFNMAS
- Overall dimensions: 820 (W) × 1796 (H) x 475 (D) mm
- Single silo net dimensions: 260 (W) x 220 (H) x 420 (D) mm
- Number of machine warehouses: 10
- Color and pattern: default is orange-white; Customization is supported
- Battery Swap Methods: APP Scanning / NFC Card
- Peak charging efficiency: 93.5%
- Maximum charging power per channel: 1500W/20A
- Dust and water resistance: IP54
6 Compartment Large-format Battery Swap Cabinet
6 Compartment Large-format Battery Swap Cabinet
- Product Model:XPE-6BNNFNMAS
- Overall Dimensions:1017(W)x1567(H)x550(D) mm
- Single Slot Internal Dimensions:350(W)x305(H)x490(D) mm
- Slots:6
- Color & Finish:Default orange-white; customisable
- Battery Swap Methods: APP Scanning / NFC Card
- Peak Charging Efficiency:95%
- Maximum Charging Power per Channel:1500W / 20A
- Dust & Water Protection:IP54
8 Compartment Water-Firefighting Battery Swap Cabinet
8 Compartment Water-Firefighting Battery Swap Cabinet
- Product Model: XPE-08BNAINAWR
- Overall Dimensions:910(W)×1773(H)×676(D) mm
- Single Slot Internal Dimensions:240(W)×220(H)×400(D) mm
- Slots:8
- Color & Finish: Default orange-white; customisable
- Battery Swap Methods: APP Scanning / NFC Card
- Peak Charging Efficiency: 93.5%
- Maximum Charging Power per Channel:1300W/20A
- Dust & Water Protection: IP54
On-Demand Delivery & Battery Swapping
Battery Swapping for Daily Commuting
Battery Swapping for Shared Electric Vehicles
Battery Swapping for Logistics & Freight
High Temperatures
An optional built-in air conditioning system helps maintain stable operation in high-temperature environments.
Cold Climates
An optional PTC heating module enables the equipment to start and operate normally at temperatures as low as -20°C.
Rain & Dust Protection
IP54-rated protection against dust and water splashes, with an optional integrated rain canopy for enhanced outdoor protection.
Wind Resistance
Reinforcement solutions are available to enhance wind resistance, with protection against winds up to Beaufort Force 12.
Fire Safety
An integrated water-immersion and spray fire suppression system enhances fire safety during operation.
Intelligent Anti-theft
Hall-effect sensor-based anti-theft locks and GPS positioning help monitor equipment status and track its location.
Dust & Water Protection
IP54-rated protection against dust and water splashes supports reliable operation in various outdoor environments.
Heat & Corrosion Resistance
Sheet metal components undergo pickling and phosphating to improve corrosion resistance. High- and low-temperature testing helps verify environmental adaptability.
Front-Access Maintenance
Designed for front-access servicing, simplifying routine inspections, troubleshooting, and component maintenance while improving service efficiency.
Remote Control
Remotely control battery swapping cabinets via mobile devices for convenient equipment management.
